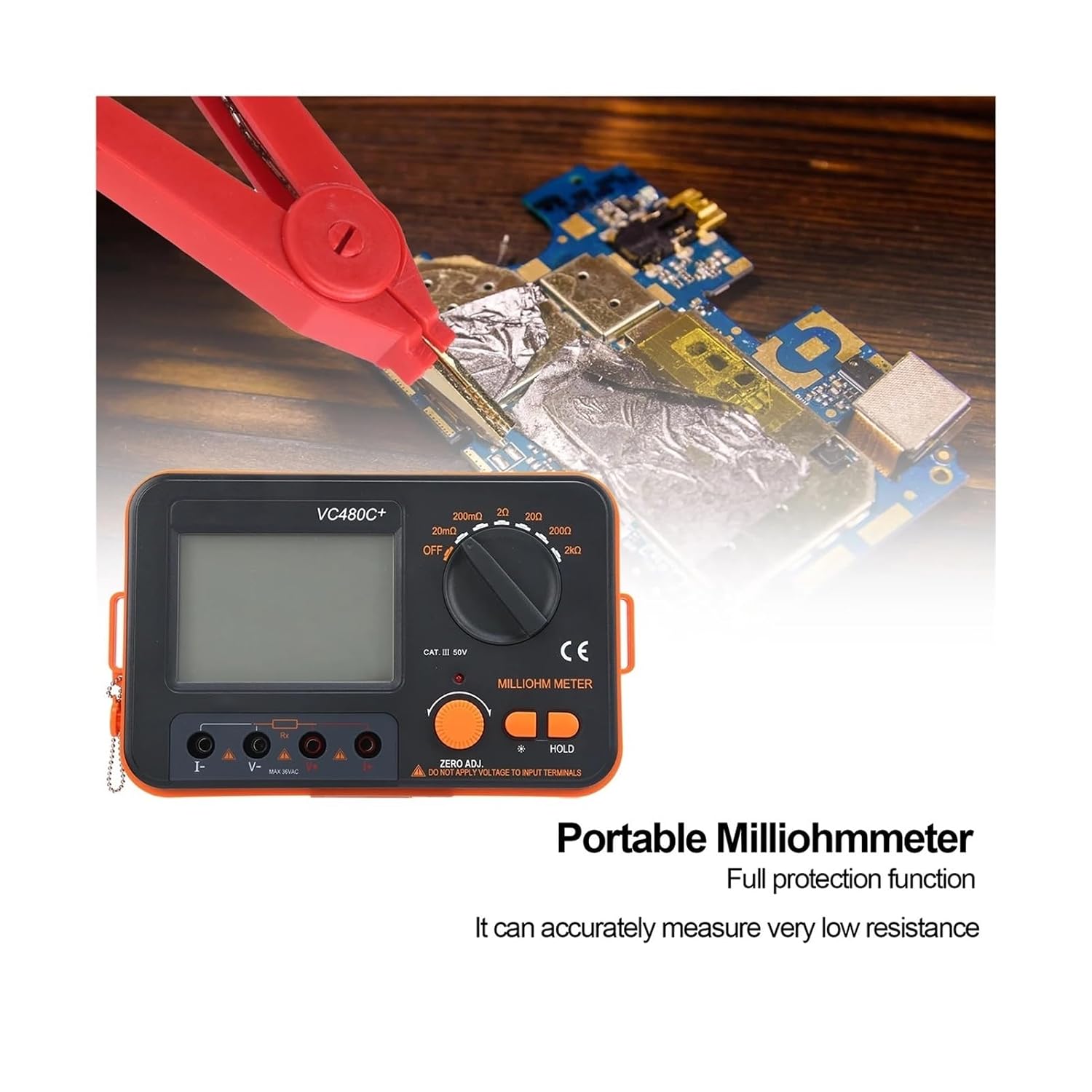

Capacitance Meters, Hand Held Resistance Tester VC480C 0.01mΩ‑2kΩ 6‑Gear Digital Milliohmmeter 4‑Wire Measurement Low Resistance Tester

Feature:1. Using the fourwire measurement method, it can measure very low resistance while maintaining high accuracy.2. Full protection function, strong antimagnetic and antiinterference ability, to ensure the accuracy of measurement results.3. Largescreen LCD display with clear handwriting makes it easier to measure and record data.4. Function symbol display, detailed data display, convenient and simple operation.5. Small size, portable and light weight, it can be easily handheld to measure in various situations.Specification:Item Type: Resistance TesterModel: VC480C+Material: ABSPower Supply: 6xAA 1.5V Battery / External DC 9V Adapter Power Supply (Battery and power Supply Not Included)Purpose: It can be used for low resistance test.Range Accuracy Resolution Test Current20 m ±(0.5% Reading±3) 0.01 m About 100mA200 m ±(0.5% Reading±3) 0.1 m About 50mA2 1 m20 1 0m200 1 00m2k 1Special Function VC480C+Low Voltage Display Approximately Lower than 7.5V DisplayData Retention Backlight Display/Function Protection Sampling Rate 3 Times/SecOperation Method Manual RangeMaximum Display 1999LCD Size 75x52mmPower Supply 6 x 1.5VAA Batteries / External DC 9V Adapter Power SupplyPower Consumption Quiescent Current about 6mAPackage List:1 x Resistance Tester (Battery Not Included)2 x Four-Wire Test Lead1 x Strap1 x ManualNote:When using the resistance tester, do not touch the metal part of the test lead with your hands to ensure safety.

• Portable & Lightweight Design:Designed for handheld use, this lightweight device is for on-site testing.
• High Accuracy Range:Boasts a versatile range from 0.01mΩ to 2kΩ with ±0.5% reading accuracy.
• Multiple Test Current Options:Offers various test currents to suit different resistance measurement needs.
• Large LCD Screen & Backlight:Features a clear 75x52mm LCD with backlight for easy data viewing in dim lighting.
• Vc480c Manual|Vc480c Low Resistance Tester|4-Wire Measurement Technology:Employs a 4-wire measurement method for precise low resistance testing.
